• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81453

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

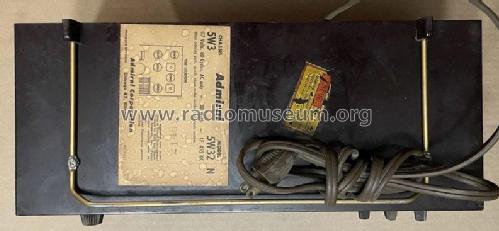

• Model: 5W32 Ch= 5W3 - Admiral brand Continental

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• AM-Receiver With Electric Clock.

• Source of data
• Beitman Radio Diagrams, Vol. 16, 1956

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 352, Folder 2, Date 3-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
