- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81457
-
- alternative name: Continental Radio & TV
RECONSTRUCTED LABEL

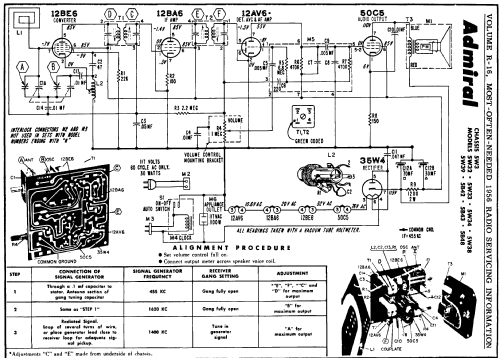

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 5W39 Ch= 5W3 - Admiral brand Continental
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
AM-Receiver With Electric Clock.
- Source of data
- Beitman Radio Diagrams, Vol. 16, 1956
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 352. Folder 2, Date 3-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
