- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31294
-
- alternative name: Continental Radio & TV
RECONSTRUCTED LABEL

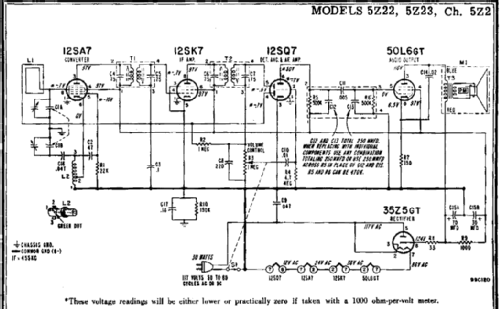

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5Z23 Ch= 5Z2 - Admiral brand Continental
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Color= Ivory.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98 (page 30.)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 378 Vol.38 Pfotofact Servicer dated 11-57)
