• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31303

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

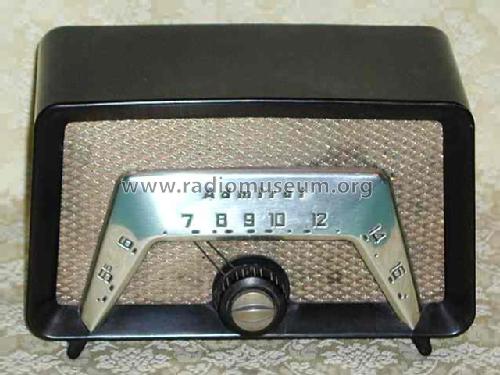

• Model: 6C22A Ch= 6C2A - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.625 x 8.125 x 5.5625 inch / 321 x 206 x 141 mm

• Notes
• Color= Mahogany. With a powerful Ferroscope antenna.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Date 9-54, Set 252, Folder 3
