• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191222

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AT7 12BA6 12BA6 12AL5 12AV6 50C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 6Q12N Ch= 6Q1 - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Notes
• Selenimum rectifier.

• Mentioned in

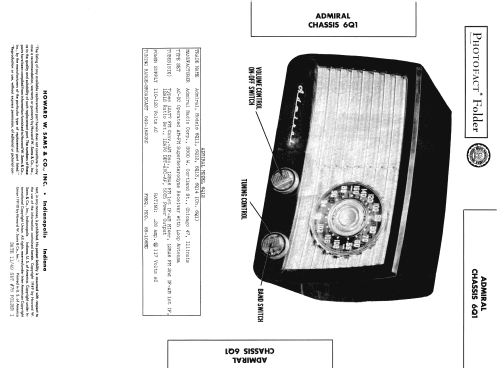

• Photofact Folder, Howard W. SAMS (Set 78, Folder 1, Date 11/1949)

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
