• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1945 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118826

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6RT43 Ch= 5B1-PH - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Notes
• Built in loop antenna.

• Literature/Schematics (1)

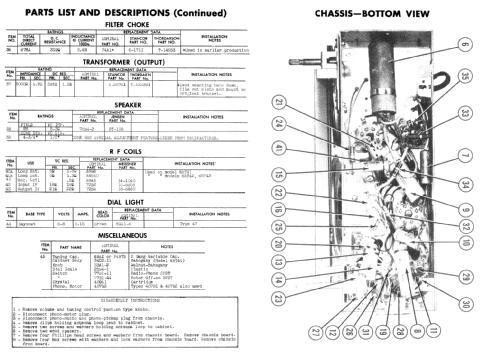

• Photofact Folder, Howard W. SAMS (Folder 464-24 date 9-46)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
