- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103712
-
- alternative name: Continental Radio & TV

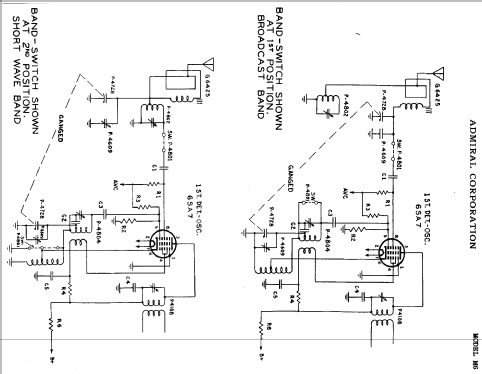

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 71 Ch= M6 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 30.75 x 39 x 16.5 inch / 781 x 991 x 419 mm
- Notes
- Built in loop antenna.
- Price in first year of sale
- 69.95 $
- Source of data
- The Complete Price Guide to Antique Radios: Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (January 1941.)
- Author
- Model page created by Rainer Sluga. See "Data change" for further contributors.
