- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68811
-
- alternative name: Continental Radio & TV

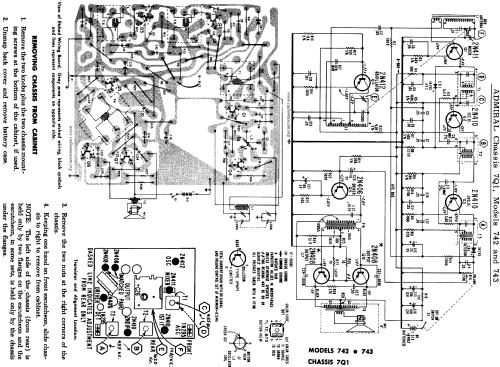

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 742 Ch= 7Q1 - Admiral brand Continental
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- The Admiral models 742 and 743 use the chassis 7Q1. The difference is color: we believe 742 in red, 743 in white.
- Price in first year of sale
- 30.00 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-60, set 474, folder 4)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
