• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31386

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SG7 6SA7 6SK7 6SQ7 6U5 6V6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

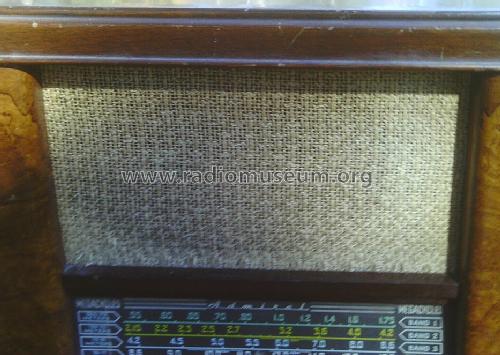

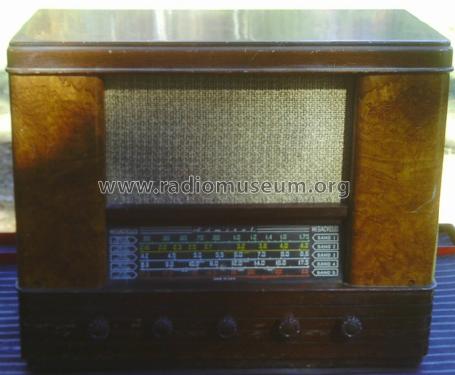

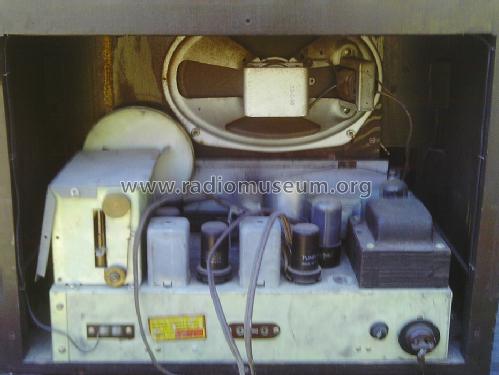

• Model: 7T09-S Ch= 7A1 - Admiral brand Continental

• Notes
• Speaker = 6 or 9 inch .

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Other Models

• Here you find 3211 models, 1323 with images and 2578 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
