- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31375
-
- alternative name: Continental Radio & TV
Beitman
eBay seller delta7856
eBay seller delta7856
eBay seller delta7856
eBay seller delta7856
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 7RT41 Ch= 6L1 - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes

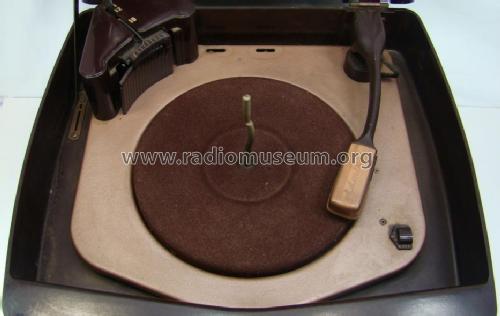

- Record Changer = Admiral RC170A.
- Price in first year of sale
- 69.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (June 1947 page 17.)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 08, 1948
- Literature/Schematics (3)
- Table Top Radios Vol. 4 Stein 2003 (page 34.)
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 26, Date 10/47, Folder 4716-2)
