C21E13 Ch= 16E1C
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 324065
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 4BC8 5CG8 3BZ6 3BZ6 3CB6 6AW8A 3BU8 3DT6 12CU5 7AU7 12DB5 6CG7 25CD6GB 19AU4GTA 1B3GT 21CEP4A 6AU6 6AU8 6BN6 6AL5 6BJ7 6CM7 6CM7 6X4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: C21E13 Ch= 16E1C - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes
-

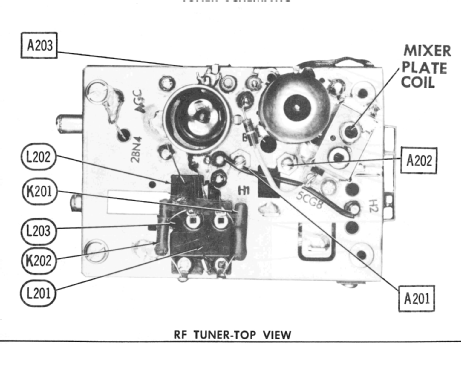

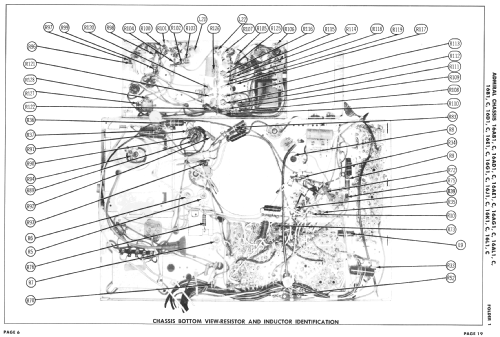

Admiral model C21E13 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 16E1C, VHF tuner 94E144-13, remote control and picture tube 21CEP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 394 Folder 1 dated 4-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
