C2306Z Ch= 20X5EZ

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 113763

• • alternative name: Continental Radio & TV

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BZ7 6J6 6CB6 6CB6 6U8 6AL5 6CB6 6AU6 6AL5 6AV6 6AS5 12AU7 6S4 6AL5 6SN7GTA 6BQ6GT 6AX4GT 1B3GT 5U4G 21AUP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: C2306Z Ch= 20X5EZ - Admiral brand Continental

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Admiral model C2306Z is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 20X5EZ, VHF tuner 94D46-3 and picture tube 21AUP4A.

• Literature/Schematics (1)

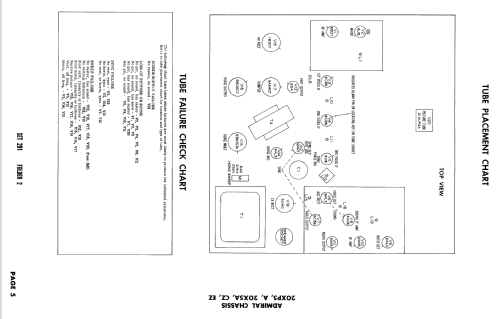

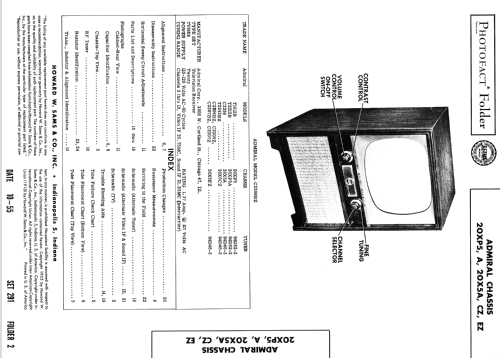

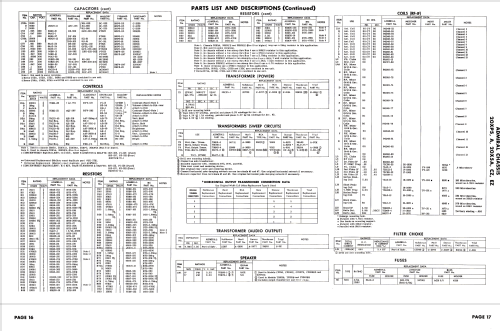

• Photofact Folder, Howard W. SAMS (Set 291 Folder 2 dated 10-55)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
