C23A2 Ch= 18Y4ES
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 300714
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6BZ7 6J6 6BZ6 6BZ6 6AM8 6AW8 6AU6 6AL5 6AS5 12AU7 6S4A 6AL5 12AU7 6CU6 6AU4GT 1B3GT 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C23A2 Ch= 18Y4ES - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes
-

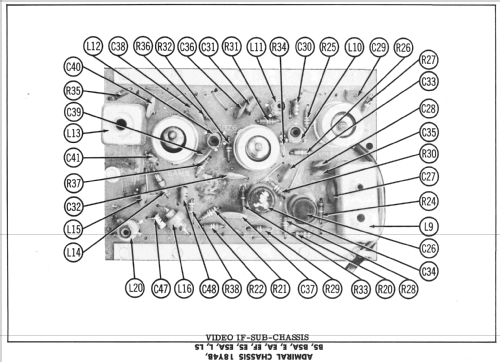

ADMIRAL model C23A2 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 18Y4ES , VHF tuner 94D92-8 and picture tube 21ALP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 320 Folder 2 dated 6-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
