• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 317517

• • alternative name: Continental Radio & TV

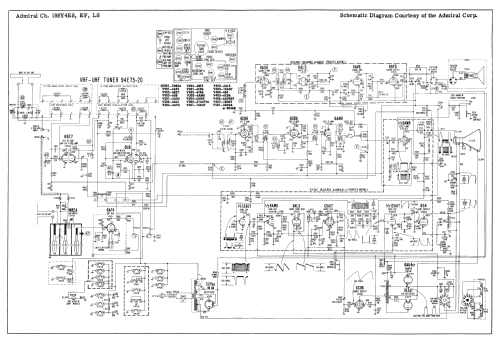

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6AF4 6BZ7 6U8 6AU6 6AL5 6AV6 6BF5 6CB6 6CB6 6AM8 6AW8 12AU7 6AL5 12AU7 6S4 6CU6 6AU4GT 1B3GT 5U4GA or 5U4GB 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Chassis Ch= 19SY4ES - Admiral brand Continental

• Notes

• Admiral chassis 19SY4ES  is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-UHF tuner 94E75-20 and picture tube 21ALP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 379 Pfotofact Servicer Vol.38 dated 11-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
