Commodore Ch= 16D110
Admiral of Australia; Bankstown
- Country
- Australia
- Manufacturer / Brand
- Admiral of Australia; Bankstown
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 297258

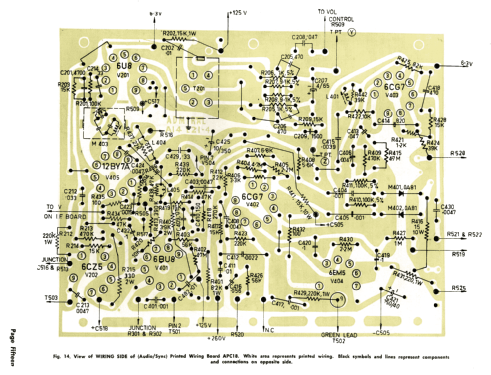

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6BC8 6U8 6BZ6 6BZ6 6CB6 12BY7A 6U8 6CZ5 6BU8 6CG7 6DB5 or 6EM5 6CG7 6CD6GA 6AU4 1B3GT 21CEP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Commodore Ch= 16D110 - Admiral of Australia;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
This 21 inch B&W television tuned the 10 then standard Australian VHF channels.
