CS21G62 Ch= 8R1
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 190154
-
- alternative name: Continental Radio & TV

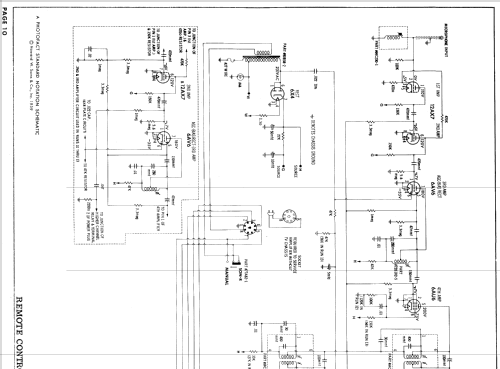

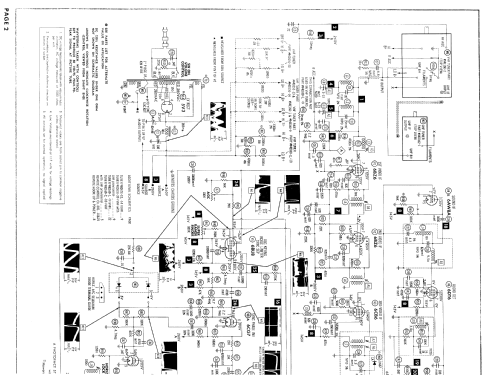

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 21DEP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: CS21G62 Ch= 8R1 - Admiral brand Continental
- Notes

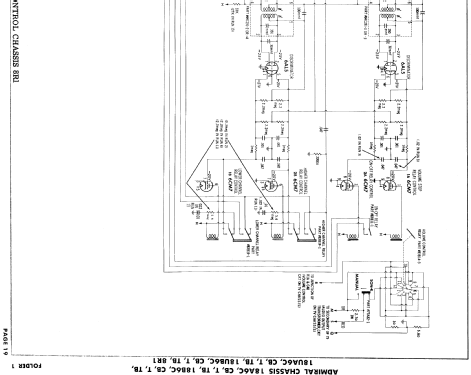

- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 18. Model with Remote Control 8R1.
- Literature/Schematics (1)

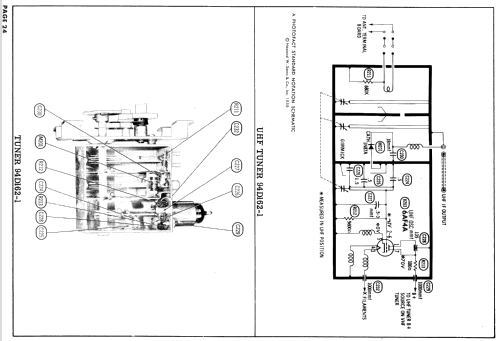

- Photofact Folder, Howard W. SAMS (Date 1-59, Set 427, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
