CS23B27 Mediterranean Ch= 20SY4E
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1956
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 113719
-
- alternative name: Continental Radio & TV

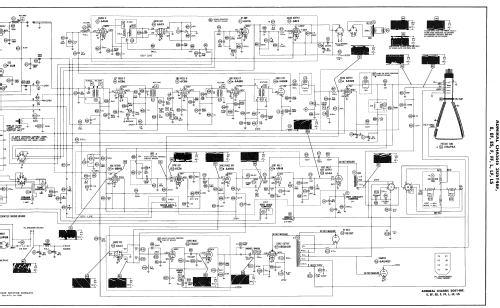

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AF4A 6BC8 6U8 6CB6 6AM8 6AW8 6BH8 6AU6 6AL5 6AV6 6BF5 6CS6 6S4A 12AU7 6BQ6GA 6AU4GT 1B3GT 5U4GB
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: CS23B27 Mediterranean Ch= 20SY4E - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Admiral model CS23B27 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 20SY4E, VHF-UHF tuner 94E75-19 and picture tube 21ALP4A.

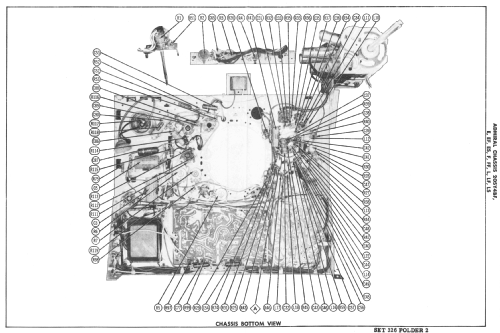

- Literature/Schematics (1)

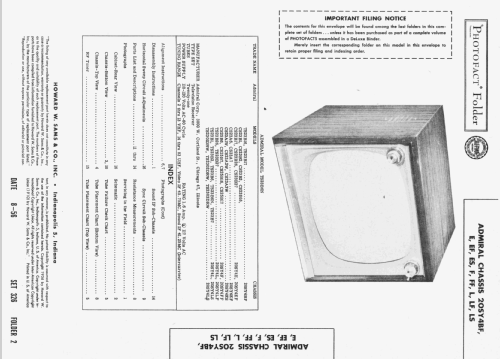

- Photofact Folder, Howard W. SAMS (Set 326 Folder 2 dated 8-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Production Changes Bulletin 200 dated 2-58)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
