CS322C16 Ch= 29SZ1

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 318746

• • alternative name: Continental Radio & TV

• Picture

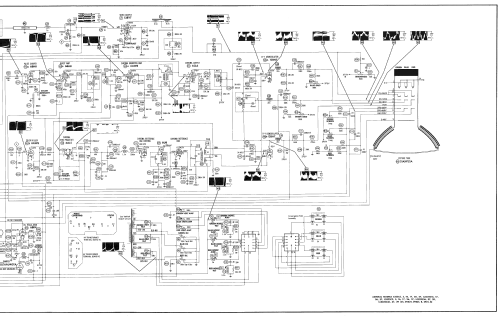

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 29

• Valves / Tubes
• 6BN4 6CG8 6BZ6 6BZ6 6BZ6 6CB6 12BY7 6AU6 6U8 6AL5 6V6GT 6CS6 6CG7 6AQ5 6CG7 6CB5A 6AU4GTA 1V2 3A3 6BK4 6AW8 6CL6 6BH8 6AL5 6U8 12BH7 5U4GB 5U4GB 21AXP22A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: CS322C16 Ch= 29SZ1 - Admiral brand Continental

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Admiral model C S322C16  is a 21 "color TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 29SZ1, VHF tuner 94D131-1 and picture tube 21AXP22A.

• Literature/Schematics (1)

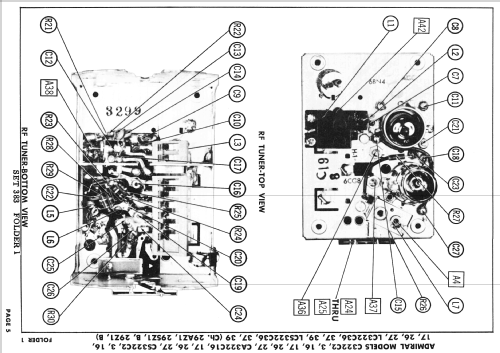

• Photofact Folder, Howard W. SAMS (Set 383 Folder 1 dated 12-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
