HF21F23 Ch= 17K1
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 184298
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 21CEP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: HF21F23 Ch= 17K1 - Admiral brand Continental
- Notes

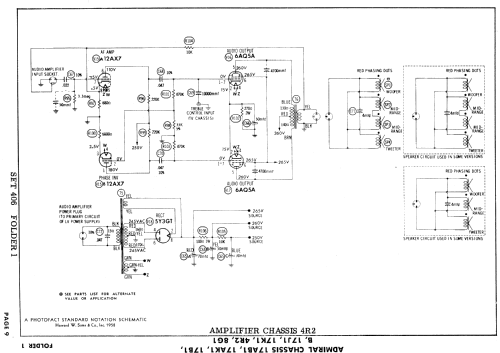

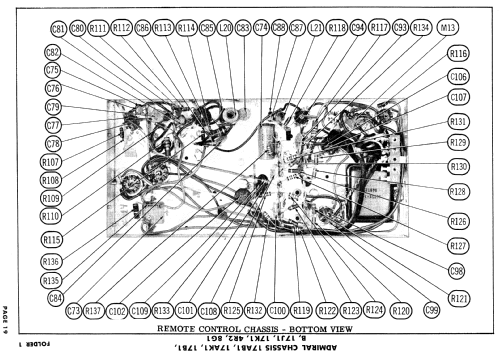

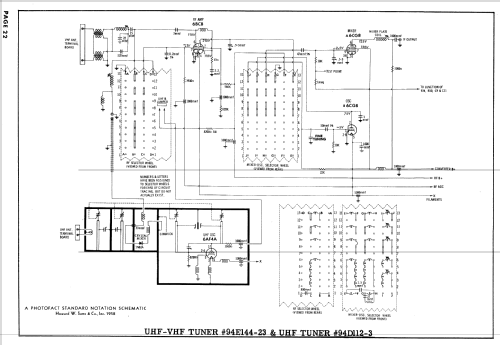

- 21" b/w TV with US standard VHF, Channels 2 thru 13, 14 thru 83 UHF. Chassis 17AB1, optionally 8G1 Remote Control(8 tubes) and 4R2 Amplifier(4 tubes).
- Literature/Schematics (1)

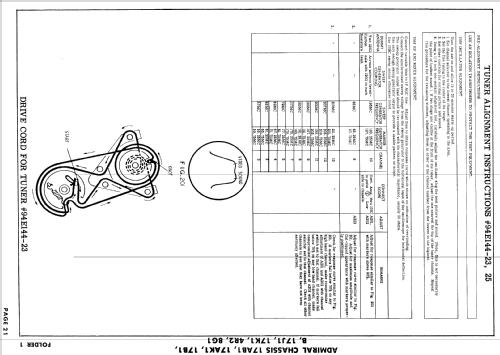

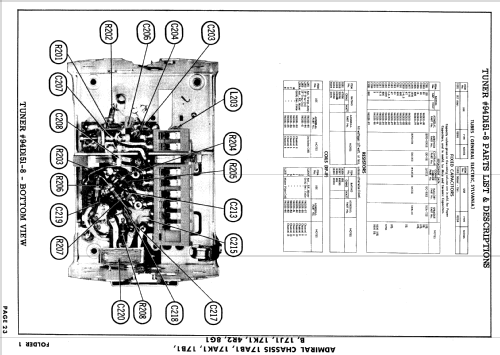

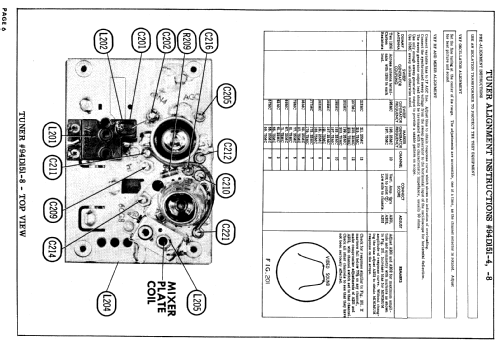

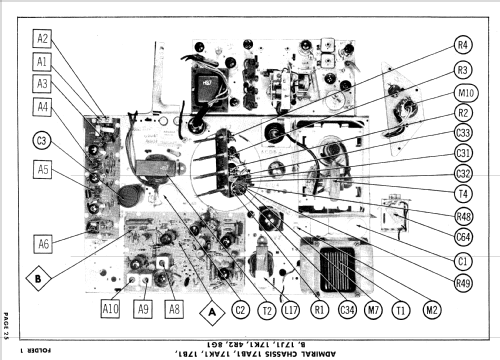

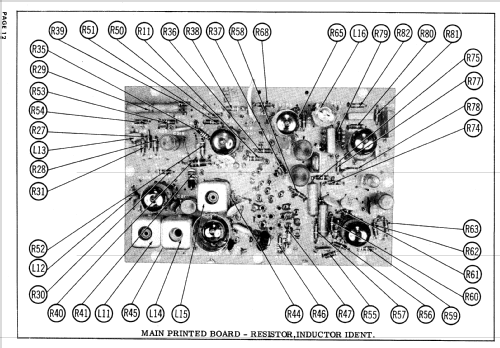

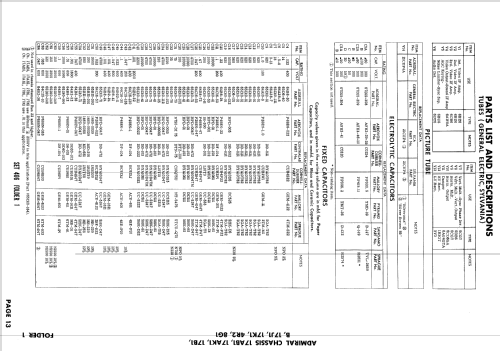

- Photofact Folder, Howard W. SAMS (Date 6-58, Set 406, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
