• Country
• Italy

• Manufacturer / Brand
• Admiral Italiana Spa; Milano

• Year
• 1963 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 318914

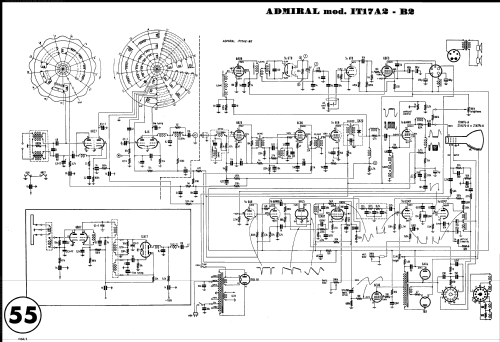

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BZ7 6J6 6BZ6 6CB6 6U8 6AW8 6AL5 12AU7 6CM7 6CU6 6AU4 1B3 6AU6 6T8 6BF5 5U4GB 17AVP4A

• Number of Transistors

• Semiconductors
• OA70

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: IT17A2 - Admiral Italiana Spa; Milano

• Notes

• Admiral Italiana SpA IT17A2

  TV B/N 17" VHF

• Mentioned in
• Esquemario TV REDE, Tomo I, 1964

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
