LK6511M "Lucerne" Ch= 1H1256-1
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1966 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 242580
-
- alternative name: Continental Radio & TV

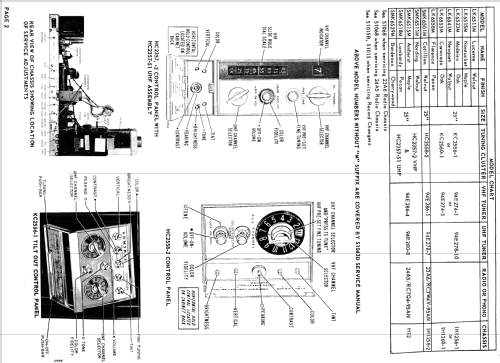

Picture from Admiral datasheet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6HQ5 6GX7 6JH6 6GM6 6JC6 6BN11 6AD10 6HS8 6JW8 6LU8 6KD6 6CG3 or 6CE3 3AT2 2BA2 or 2AV2 6BK4B 6X9 6LE8 6AF9 6GH8A 25SP22 or 25AP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: LK6511M "Lucerne" Ch= 1H1256-1 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Notes
-
The Admiral LK6511M is a 25" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 1H1256-1, Tuning cluster KC2556-1, VHF tuner 94E274-1, UHF tuner 94E278-10 and picture tube 25SP22 or 25AP22A. Uses elliptical PM 6" x 9" speaker. Cabinet is Walnut.
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- - - Manufacturers Literature (Admiral Datasheet S1062 Dated 7-66)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
- Other Models
-
Here you find 3186 models, 1323 with images and 2553 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
