LS22M42 Ch= 20T6
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 143727
-
- alternative name: Continental Radio & TV

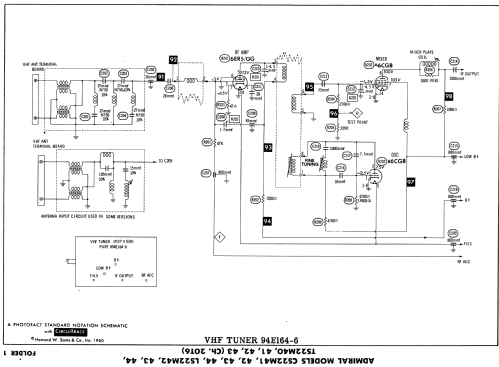

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: LS22M42 Ch= 20T6 - Admiral brand Continental
- Notes
- Sams photofact set 478 folder 1 date 3-60 features the Admiral models CS22M41, CS22M42, CS22M43, CS22M44, LS22M42, LS22M43, LS22M44, TS22M40, TS22M41, TS22M42 and TS22M43 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 478 folder 1 date 3-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
