Newport T23B1 Ch= 20Y4L

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 293306

• • alternative name: Continental Radio & TV

• Picture

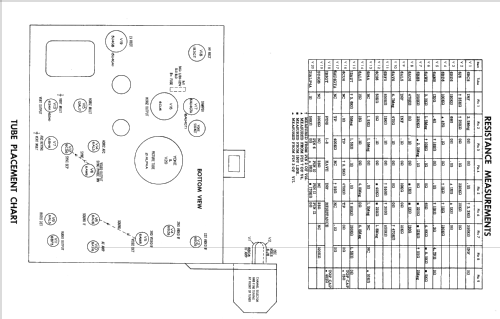

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BC8 6J6 6AU6 6AL5 6AV6 6BF5 6BZ6 6BZ6 6AM8 6AW8 6CS6 6AL5 12AU7 6S4A 6CU6 6AU4GT 1B3GT 6BH8 5U4GA or 5U4GB 21ALP4A

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Newport T23B1 Ch= 20Y4L - Admiral brand Continental

• Notes

• VHF only version of model Newport TS23B1 Ch= 20SY4L.

• Literature/Schematics (1)
• - - Manufacturers Literature (Admiral Service Data No. ST566-1, June 1955.)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 302 Folder 13-S dated 1-56)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
