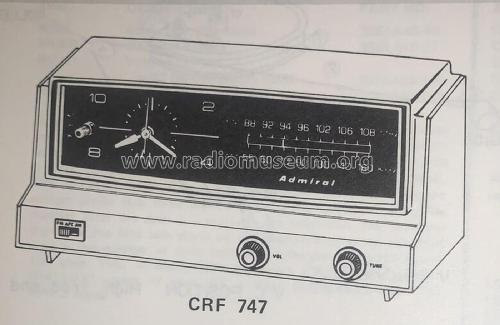

Nocturne CRF 747 Ch=8J5A

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342667
    • alternative name: Continental Radio & TV

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Nocturne CRF 747 Ch=8J5A - Admiral brand Continental
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 10 x 5 x 5 inch / 254 x 127 x 127 mm
  • Notes

  • FM-AM Clock Radio Transistor Model Admiral Nocturne CRF 747 Chassis = 8J5A

    Frequencies:
    AM 530 - 1650 kHz
    FM 88 - 108 MHz

    AFC

    The FM antenna is built into the line cord

    Finish: Color Sand

  • Net weight (2.2 lb = 1 kg)
  • 3 lb (3 lb 0 oz) / 1.362 kg
  • Mentioned in
  • - - Manufacturers Literature (Admiral Service Manual S1282)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
