P17F1, P17F2, P17F3 Ch= 15A2
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 155866
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P17F1, P17F2, P17F3 Ch= 15A2 - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes

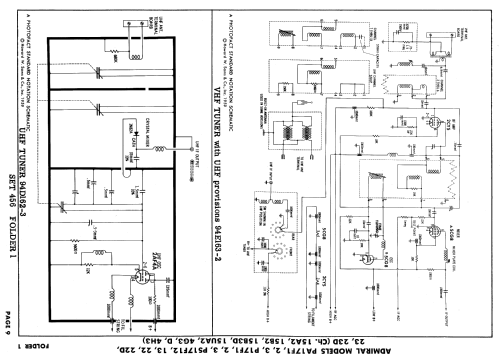

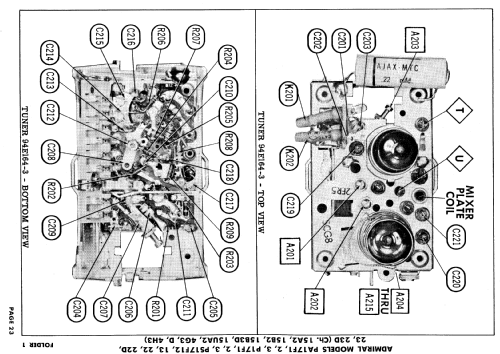

- 17" Television Receiver, Picture tube: 17CWP4, some models are equipped with continuous UHF tuner, tube quantity UHF: 15
Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.

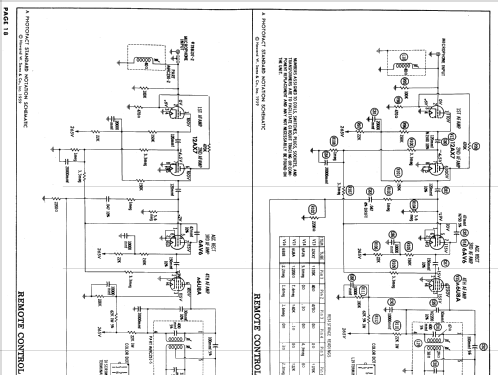

Remote Control 4H3.
- Literature/Schematics (1)

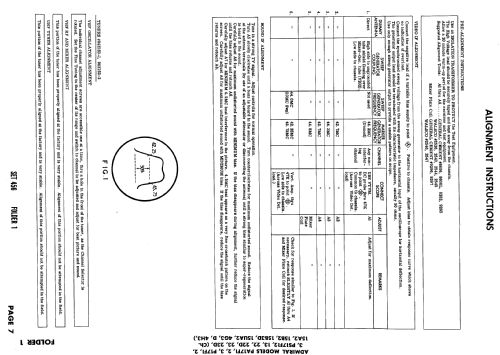

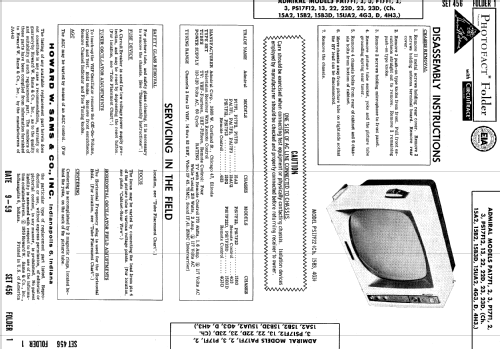

- Photofact Folder, Howard W. SAMS (Date 9-59, Set 456, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
