PL17F32B Ch= 15D1B
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 144972
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: PL17F32B Ch= 15D1B - Admiral brand Continental
- Notes
- Channels 2 thru 13 VHF. Sams photofact set 471 folder 1 date 1-60 features the Admiral models PL17F31B, PL17F32B, PL17F33B, PL17F41B, PL17F42B and PL17F43B as the same schematic.
- Literature/Schematics (1)

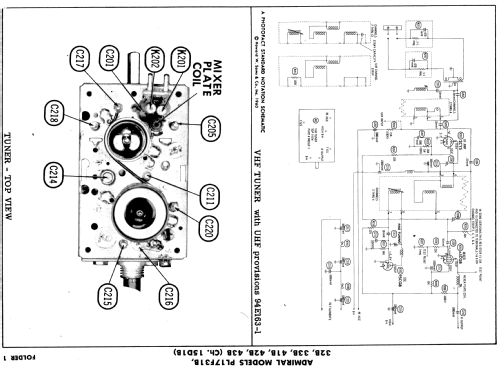

- Photofact Folder, Howard W. SAMS (Set 471 folder 1 date 1-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
