PL19J131 Ch= 15G1B
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 140100
-
- alternative name: Continental Radio & TV

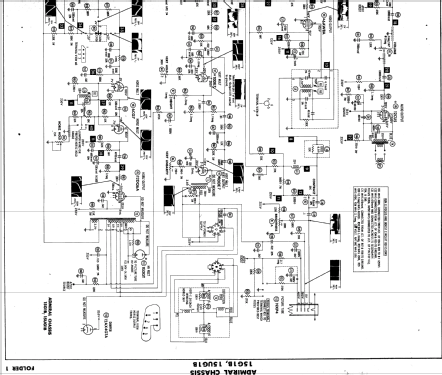

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: PL19J131 Ch= 15G1B - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes
- Channels 2 thru 13 VHF, 14 thru 83 UHF, video IF 45,75 mc. Sams photofact set 501 folder 1 date 10-60 features the Admiral models PL19J131, PL19J133, PL19J135, PL19J141, PL19J149 with chassis 15G1B and the models PL19UJ131, PL19UJ133, PL19UJ135, PL19UJ140, PL19UJ141 and PL19UJ149 with chassis 15UG1B as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 501 folder 1 date 10-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
