• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 155603

• • alternative name: Continental Radio & TV

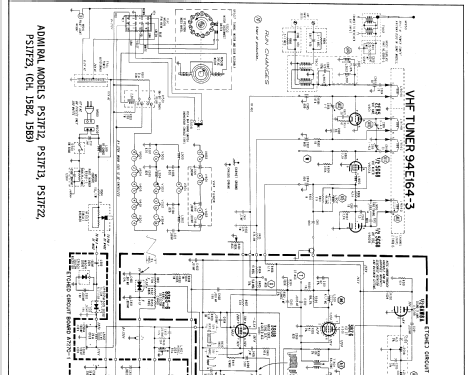

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: PS17F22, PS17F23 Ch= 15B2, 15B3 - Admiral brand Continental

• Notes
• 17" b/w TV with US standard VHF, Channels 2 thru 13. Picture tube: 17CWP4.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-59, Set 451, Folder 22-S)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
