SMK6501M "Cotillion" Ch= 1H1258-2, 23A6

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 242592
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SMK6501M "Cotillion" Ch= 1H1258-2, 23A6 - Admiral brand Continental
  • Shape
  • Console with any shape - in general
  • Notes

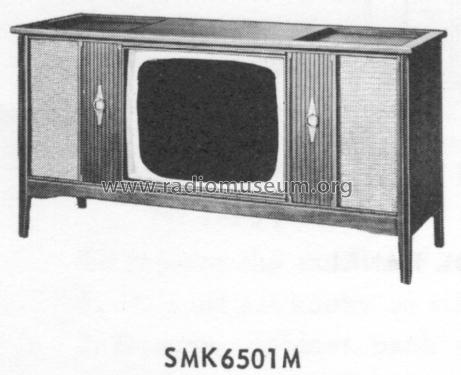

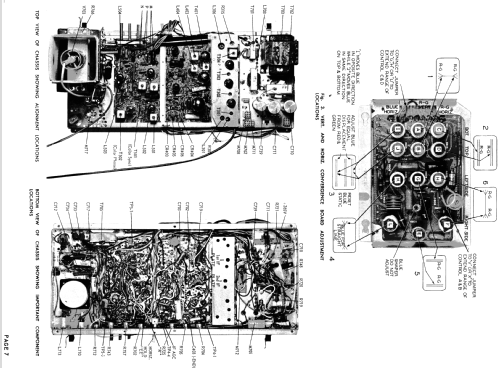

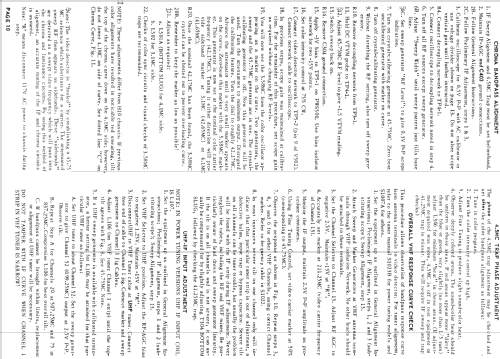

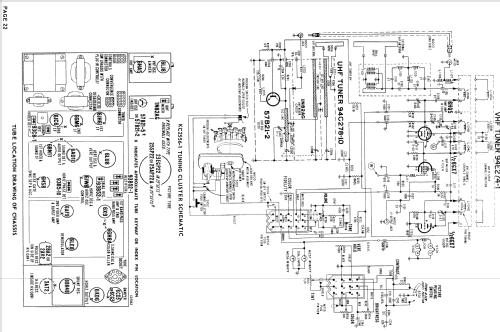

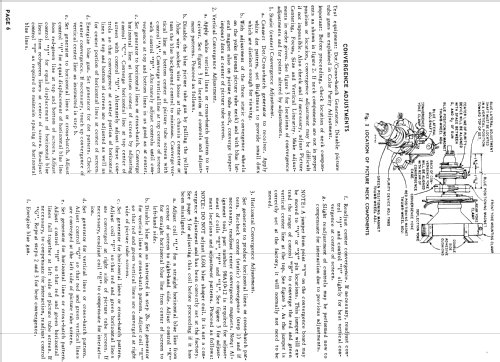

  • The Admiral SMK6501M is a combination radio, phonograph and 25" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 1H1258-2, Tuning cluster HC2558-2, VHF tuner 94E286-1, UHF tuner 94E278-7 and picture tube 25SP22 or 25AP22A. Uses Qty(1) PM 3.5" speaker and Qty(1) PM 12" speaker. Cabinet is Walnut.  Radio uses chassis 23A6.  Record changer is RC7W4V-95AN.

    Details of radio are unknown.  Tube lineup is only for TV portion.

  • Source of data
  • - - Manufacturers Literature

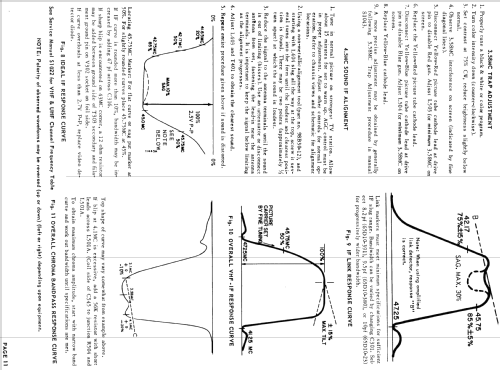

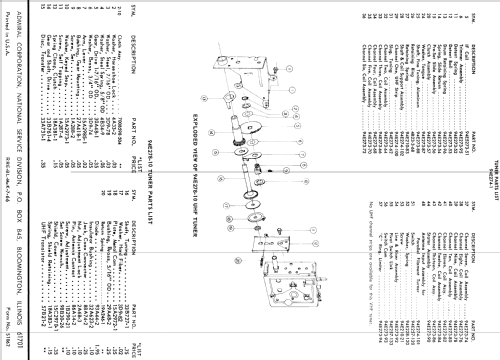

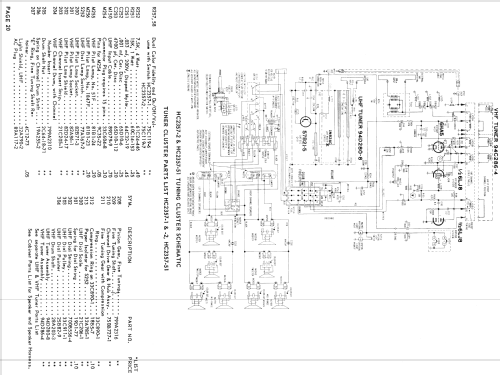

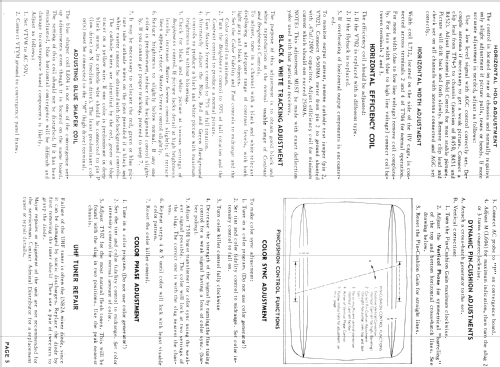

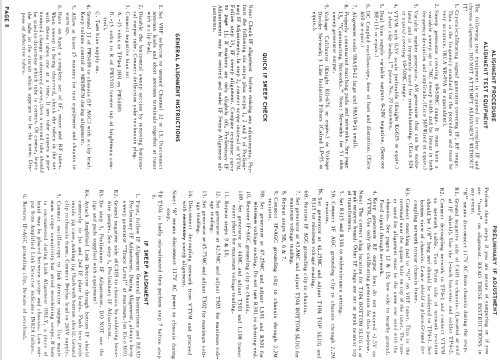

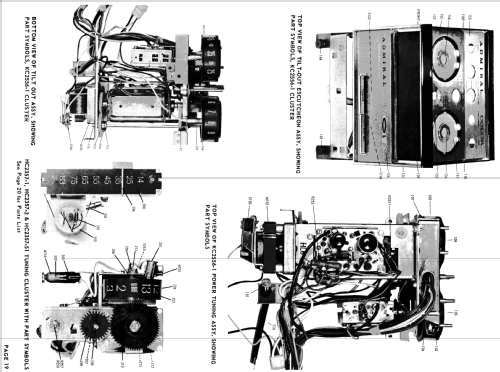

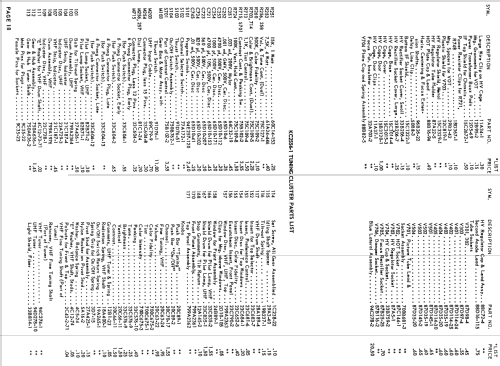

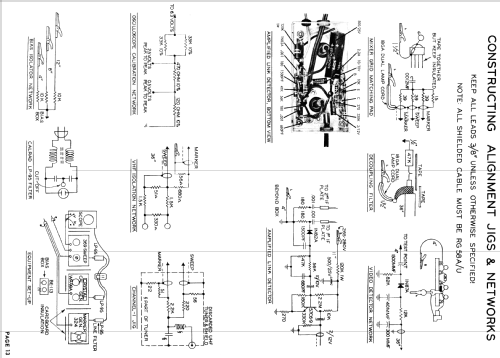

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Admiral Datasheet S1062 Dated 7-66)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
