SMK6529M "Bordeaux" Ch= H12, 24A5

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 242596
    • alternative name: Continental Radio & TV

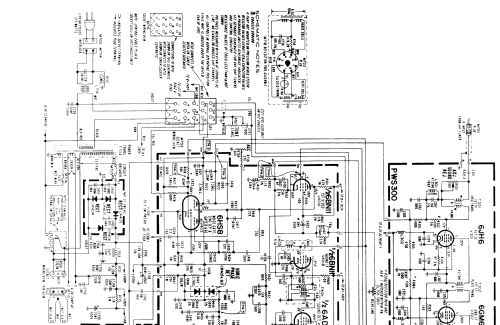

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SMK6529M "Bordeaux" Ch= H12, 24A5 - Admiral brand Continental
  • Shape
  • Console with any shape - in general
  • Notes

  • The Admiral SMK6529M is a combination radio, phonograph and 25" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis H12, VHF tuner 94E286-4, UHF tuner 94E280-8 and picture tube 25SP22 or 25AP22A. Uses Qty(1) PM 3.5" speaker, Qty(1) PM 4" speaker and Qty(1) PM 12" speaker. Cabinet is Cherrywood.  Radio uses chassis 24A5.  Record changer is RC7Q4V-95AN.

    Details of radio are unknown.  Tube lineup is only for TV portion. Details of record changer are also unknown.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Admiral Datasheet S1062 Dated 7-66)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
