T101 Ch= 14YP3B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 260391

• • alternative name: Continental Radio & TV

• Picture

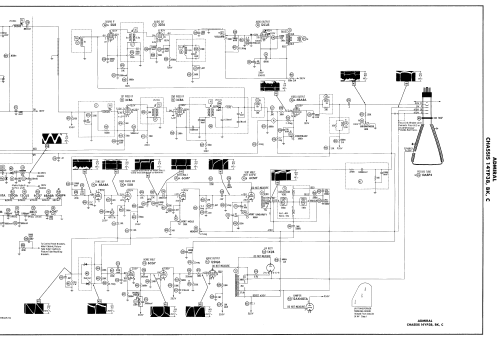

• Schematics

Previous Next

Previous Next

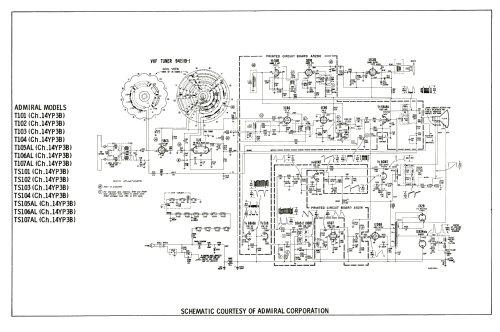

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 3BC5 5J6 3CB6 3CB6 6BA8A 5U8 3DT6 12CU5 6CM7 6CG7 12DQ6 12AX4GTA 1X2B 10ABP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T101 Ch= 14YP3B - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Admiral T101 is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 14YP3B and picture tube 10ABP4.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 380 Folder 1 Production Changes Bulletin 194 dated 12-57)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 350 Folder 1 date 3 - 57)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 333 Folder 18-S Dated 10-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
