T141 CH= 14YP3C
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 260545
-
- alternative name: Continental Radio & TV

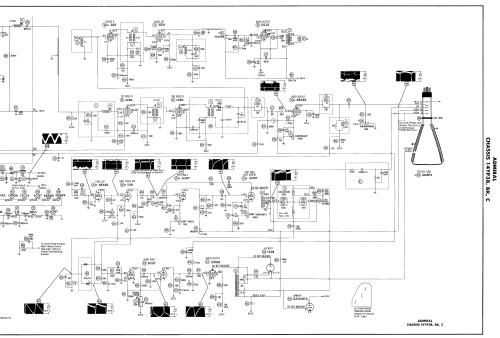

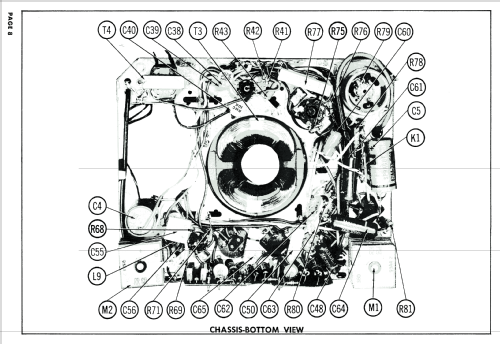

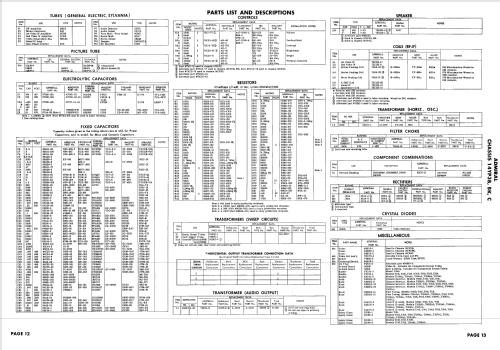

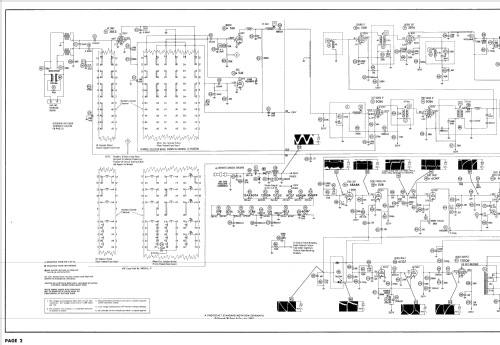

Picture from service manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T141 CH= 14YP3C - Admiral brand Continental
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Admiral T141 is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 14YP3C and picture tube 10ABP4.
- Mentioned in

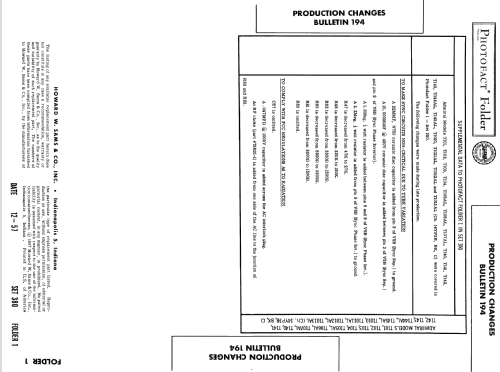

- Photofact Folder, Howard W. SAMS (Set 380 Folder 1 Production Changes Bulletin 194 dated 12-57)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 350 Folder 1 date 3-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
