T23B27 Ch= 20Y4L

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 297217

• • alternative name: Continental Radio & TV

• Picture

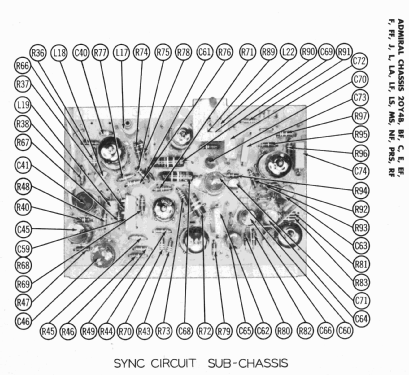

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BC8 6J6 6BZ6 6BZ6 6AM8 6AW8 6BH8 6AU6 6AL5 6AV6 6BF5 6CS6 6S4A 6AL5 12AU7 6CU6 6AU4GTA 1B3GT 5U4GB 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T23B27 Ch= 20Y4L - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Notes

• THE ADMIRAL model T23B27 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 94D92-7, chassis 20Y4L and picture tube 21ALP4A.

• Literature/Schematics (1)

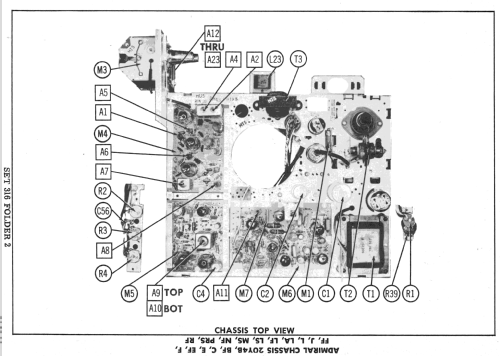

• Photofact Folder, Howard W. SAMS (Set 316 Folder 2 Dated 5-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 302 Folder 13-S dated 1-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
