• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349807

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: TM421 Ch= 24A3B - Admiral brand Continental

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.25 x 7.75 x 13.75 inch / 362 x 197 x 349 mm

• Notes

• Inputs AM, FM, FM Stereo, Tape and Phono (Crystal Cartridge)



• Net weight (2.2 lb = 1 kg)
• 18 lb 15 oz (18.938 lb) / 8.598 kg

• Literature/Schematics (1)

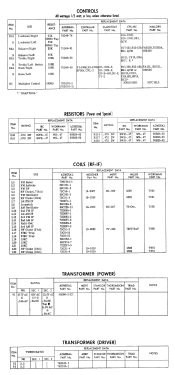

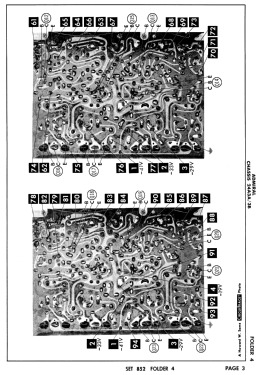

• Photofact Folder, Howard W. SAMS (Set 852, Folder 4, Jan. 1967)

• Author
• Model page created by Lester Troeckler. See "Data change" for further contributors.
