• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 143732

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6ER5 6CG8A 6BZ6 6BZ6 6CB6 6AW8A 6BU8 6DT6 6AS5A 6DE7 6CG7 6DQ6A 6AX4GT 1G3GT 21CBP4A

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: TS22M41 Ch= 20T6 - Admiral brand Continental

• Notes

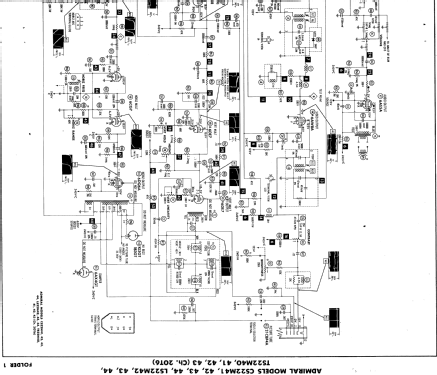

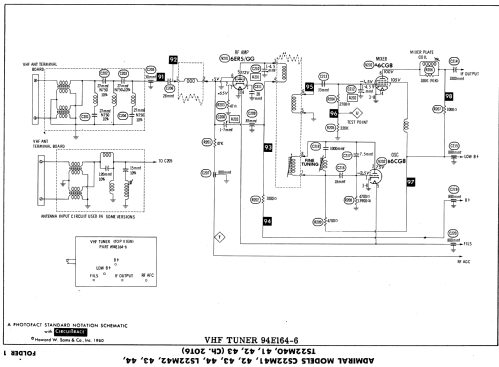

• Sams photofact set 478 folder 1 date 3-60 features the Admiral models CS22M41, CS22M42, CS22M43, CS22M44, LS22M42, LS22M43, LS22M44, TS22M40, TS22M41, TS22M42 and TS22M43 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 478 folder 1 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
