• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133492

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

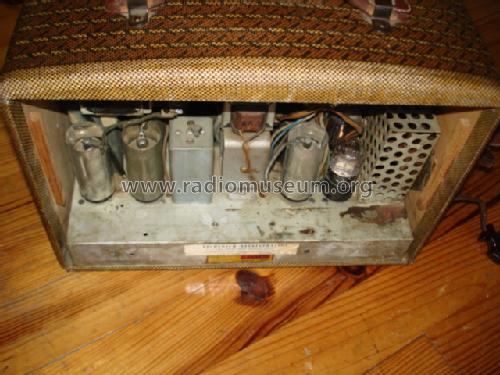

• 1N5 1A7 1N5 1H5 3Q5 117Z6

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 105-125; 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

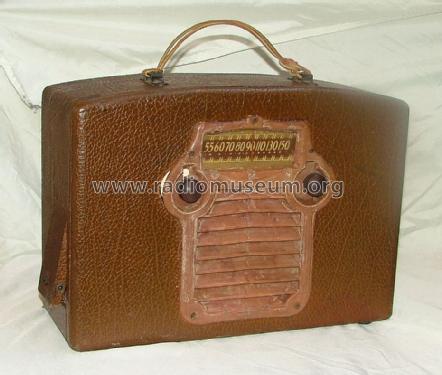

• Model: XG6 - Admiral brand Continental

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 335 x 280 x 150 inch / 8509 x 7112 x 3810 mm

• Notes
• Built in loop antenna. Line supply: AC/DC set.

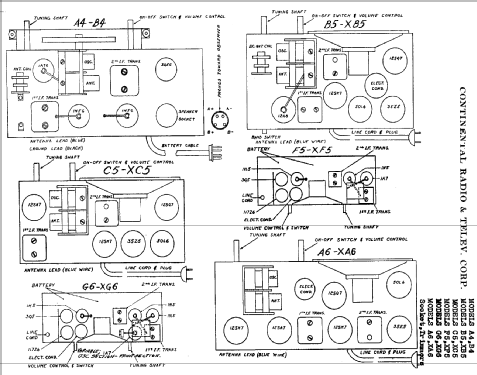

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
