• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139127

• • alternative name: Continental Radio & TV

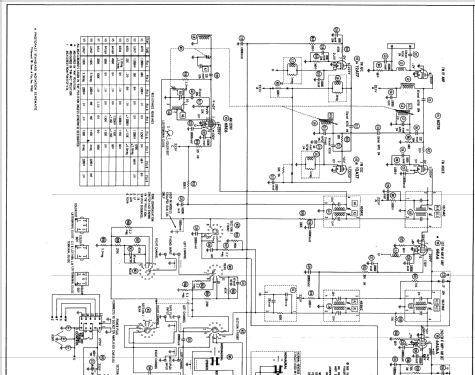

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6DT8 12AT7 6BE6 6BA6 6AU6A 6AU6A 6AL5 12AU7 12AU7 12AU7A 12AU7 6BQ5 6BQ5 6BQ5 6BQ5 5U4GB

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Y1103 Ch= 9J1A Ch= 7R1 - Admiral brand Continental

• Notes
• Sams photofact set 509 folder 3 date 12-60 features the Admiral models Y1081, Y1102, Y1103, Y1139 with tuner chassis 9J1A and amplifier chassis 7R1 and the models Y1149, Y1171, Y1172, Y1173, Y1191, Y1192 with tuner chassis 9J1 and amplifier chassis 7R1 as the same schematic. All these models have external speaker systems SS1081, SS1092, SS1093 or SS1139.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 509 folder 3 date 12-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
