Y3593N Ch= 6A4N

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134478

• • alternative name: Continental Radio & TV

• Picture
• Schematics

Previous Next

Previous Next

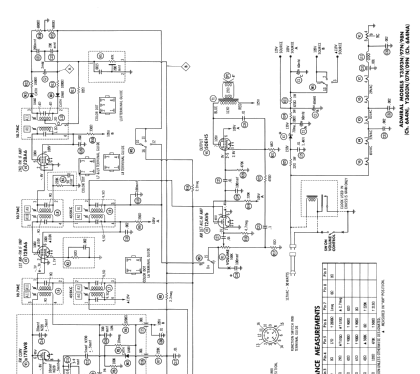

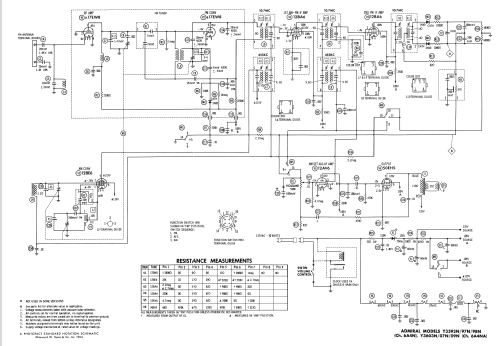

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 17EW8 12BE6 12BA6 12BA6 12AV6 50EH5

• Number of Transistors

• Semiconductors
• 1N60 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Y3593N Ch= 6A4N - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• SAMS Photofact date 9-64, set 715, folder 6 features the Admiral models Y3593N, Y3597N and Y3598N for chassis 6A4N and models Y3603N, Y3607N and Y3609N with chassis 6A4NA. The chassis 6A4NA is the same but is for an electric clock radio. Each chassis has a different case for 3 colors which are differenciated in the model number.

  For more information on the Y-models including colors see this link.

• Literature/Schematics (1)

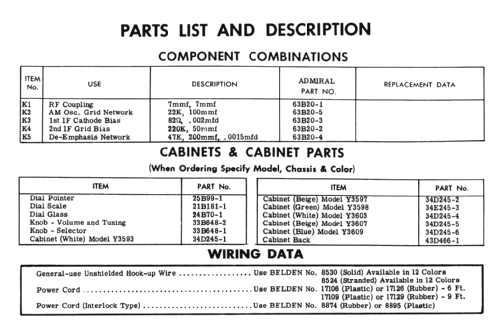

• Photofact Folder, Howard W. SAMS (Date 9-64, set 715, folder 6, title copy)

• Literature/Schematics (2)

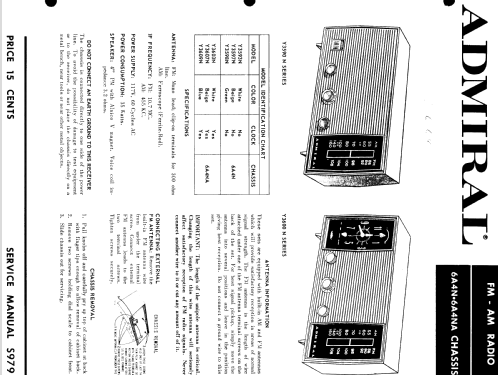

• - - Manufacturers Literature (Admiral Service Manual S979, November 1963)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
