Y3631N Ch= 8X2N

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 240993
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / Either AC 50 to 60 cycles, 117V or DC 117 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Y3631N Ch= 8X2N - Admiral brand Continental
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

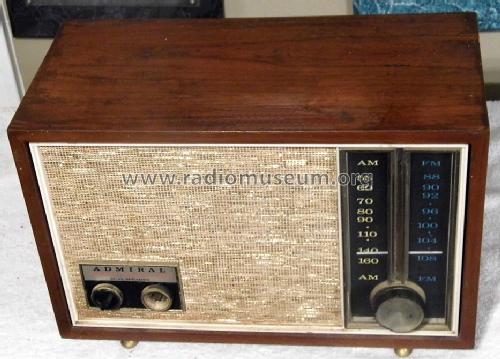

  • The Admiral Y3631N is an AC/DC operated 8 tube BC and FM band receiver. Has Qty(1) 3.5" PM speaker and Qty(1) 6" PM speaker. Cabinet color is Walnut and White. Has Ferrite Rod for AM antenna and uses line cord for FM antenna.  Power Consumption 50 Watts.

    Made in Japan.

    The following models use the same schematic but have different cabinets and colors:

    Model Number Cabinet Color
    Y3621N Black and White
    Y3627N Brown and White
    Y3631N Walnut and White

    For more information on the Y-models including colors see this link.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Admiral Service Manual S987 Dated 2-64)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
