- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1963 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 90475
-
- alternative name: Continental Radio & TV

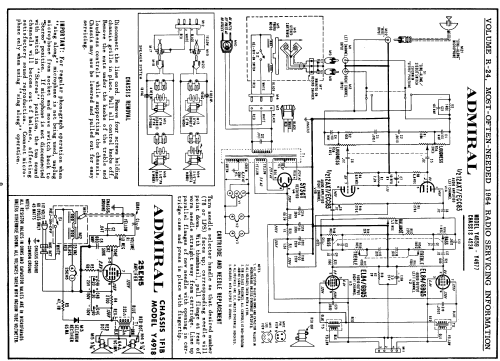

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: Y4677 Ch= 4S3A - Admiral brand Continental
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 24, 1964
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
