- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68815
-
- alternative name: Continental Radio & TV

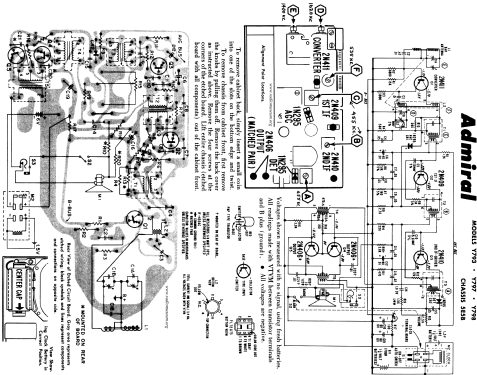

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1.5 / 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Y793 Ch= 5E5B - Admiral brand Continental
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- With clock; clock battery: 1x 1,5V. Sams photofact set 478 folder 4 date 3-60 features the Admiral models 691, 692, Y793, Y797 and Y798 as the same schematic.
- Price in first year of sale
- 30.00 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)

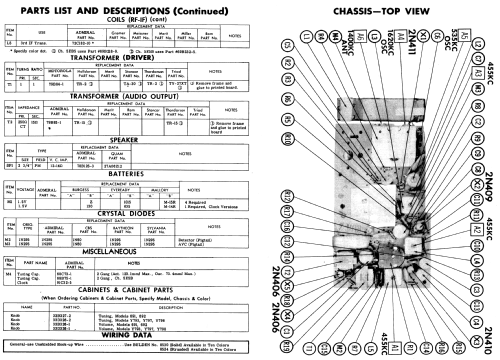

- Photofact Folder, Howard W. SAMS (Set 478 folder 4 date 3-60)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
