- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68832
-
- alternative name: Continental Radio & TV

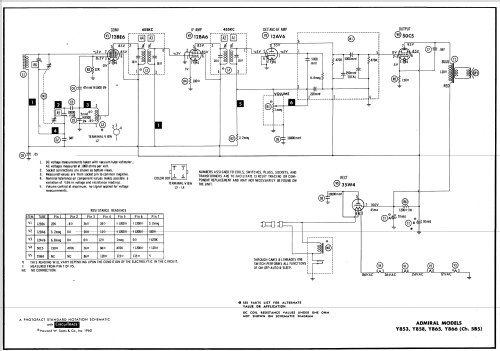

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Y865 Ch= 5B5 - Admiral brand Continental
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
- AC operated AM receiver with electric clock. Sams photofact set 483 folder 3 date 5-60 features the Admiral models Y853, Y858, Y865 and Y866 as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 483 folder 3 date 5-60)
