Y865B Ch= 5B5B

Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85048
    • alternative name: Continental Radio & TV

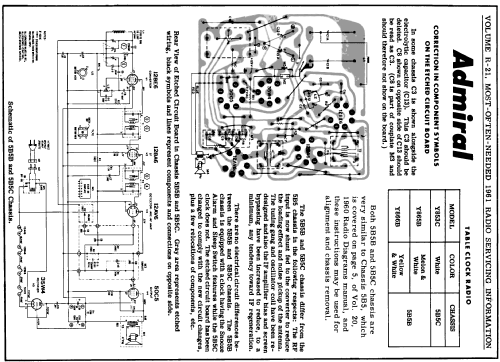

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

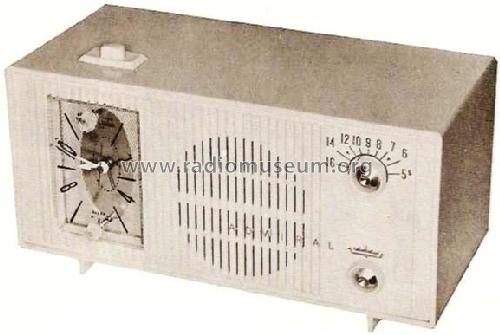

  • Model: Y865B Ch= 5B5B - Admiral brand Continental
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • SAMS Photofact date 4-61, set 527, folder 3 has the same schematic for Admiral models Y853C (color = white) with chassis 5B5C and models Y865B (melon and white) and Y866B (yellow and white) with chassis B5B. These models are AC operated 5 tube AM receivers with electric clock where everything is the same except color but model 853C has no "Snooze Alarm" and "Sleep Switch". Both chassis, 5B5B and 5B5C, are very similar to chassis 5B5 which is covered on page 5, of Vol. 20, 1960 Beitman Radio Diagrams manual, and these instructions may be used for alignment and chassis removal. The models have a ferrite loop antenna.

    For more information on the Y-models see this link.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
