• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237494

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

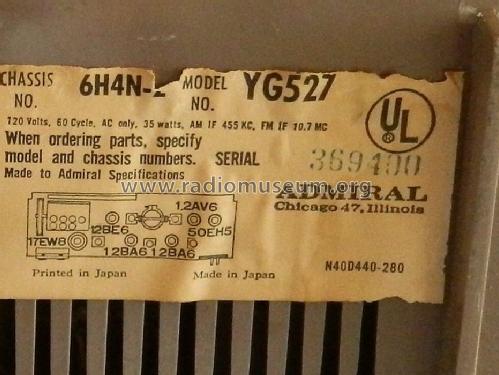

• 17EW8 12BE6 12BA6 12BA6 12AV6 50EH5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycle, 120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

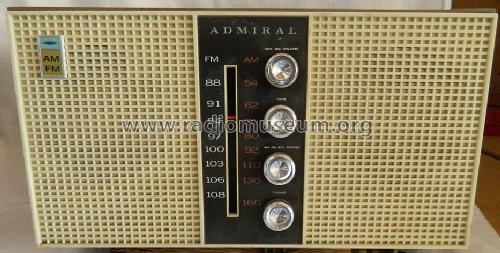

• Model: YG527 Ch= 6H4N-2 - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

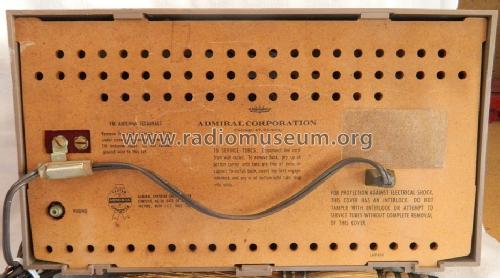

• The Admiral YG527 is an AC operated 6 tube BC and FM band receiver.  The FM has AFC. Has phono input on cabinet back. Made in Japan. Uses line cord as FM antenna with provisions for using external antenna.

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
