• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 209216

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: F - Advance Electric Co. Falck;
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 9 x 11.5 x 7 inch / 229 x 292 x 178 mm
  • Notes

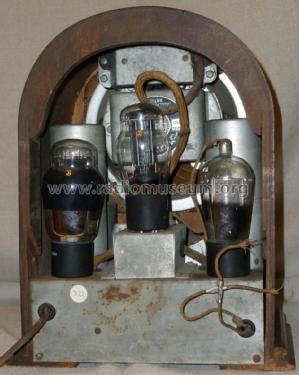

  • Rounded top, circular ornamental speaker grille, semi-circular dial with escutcheon. Advance model F is pictured on page 6 of Los Angeles Radio Manufacturing by Floyd A. Paul.
  • Literature/Schematics (1)
  • Los Angeles Radio Manufacturing by Floyd A. Paul, p.6
  • Author
  • Model page created by John Miller. See "Data change" for further contributors.
