- Country
- United States of America (USA)
- Manufacturer / Brand
- Advance Electric Co. (Falck); Los Angeles, CA
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31456
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org

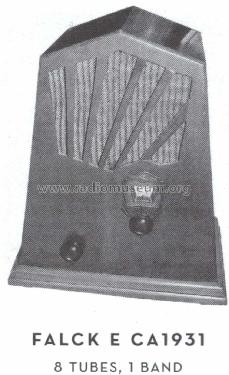

- Model: Falck E - Advance Electric Co. Falck;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Stein "Cathedral & Tombstone Radios" lists 8 tubes for this model.
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 112.)
