• Country
• Great Britain (UK)

• Manufacturer / Brand
• Advance Electronics / Components Ltd.; Hainault, Wrexham

• Year
• 1966 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 201845

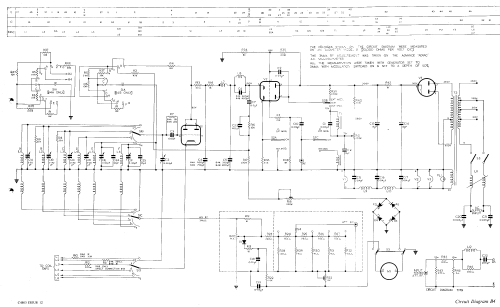

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC91 6SN7GT 6X5GT

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 210; 230; 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: RF-Signal Generator B4B - Advance Electronics /

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 314 x 184 mm / 13 x 12.4 x 7.2 inch

• Notes
• The Advance B4B is a AM/CW RF signal generator, which covers frequencies from 30 kHz to 30 MHz in six bands. Accuracy within ± 1 % is given. The modulation can be internal (400 Hz) or external (10 Hz to 10 kHz). A meter on the front panel monitors either the modulation or the RF amplitude.

  ---

  Die Modellreihe R.F. Signal generator B4 umfasst die Modelle B4A, B4B, B4AC und B4BC. Die Modelle unterscheiden sich wie folgt:

  B4A: 100kHz - 80MHz, ext. Modulation 10 - 30kHz, Ausgangsimpedanz: 75kR
  B4B: 30kHz - 30MHz, ext. Modulation 10 - 30kHz, Ausgangsimpedanz: 75kR
  B4AC: 100kHz - 80MHz, ext. Modulation 10 - 30kHz, Ausgangsimpedanz: 50kR
  B4BC: 30kHz - 30MHz, ext. Modulation 10 - 30kHz, Ausgangsimpedanz: 50kR


• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)
