• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 270

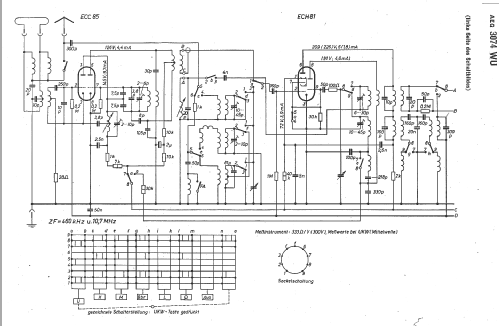

Click on the schematic thumbnail to request the schematic as a free document.

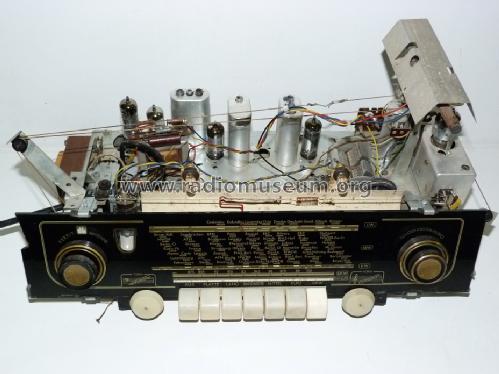

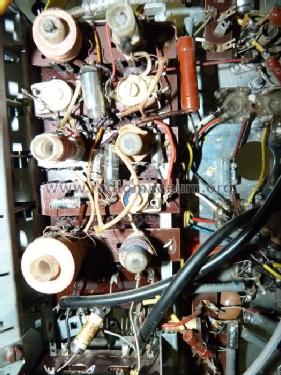

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

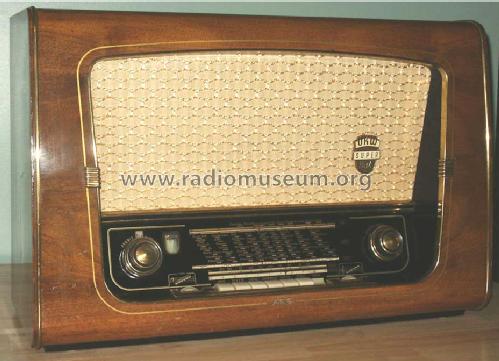

• Model: 3074WU - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 415 x 280 mm / 24.4 x 16.3 x 11 inch

• Notes
• variable Bandbreite, KW-Lupe; Chassis baugleich mit Telefunken Rondo 55

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 349.00 DM

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb

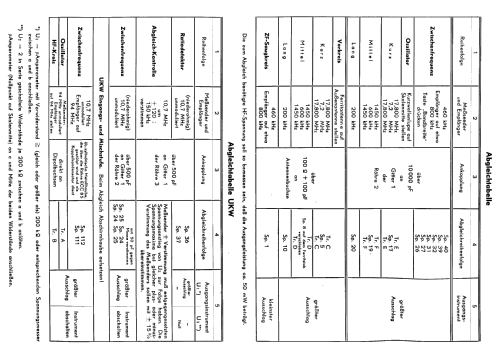

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 844 models, 735 with images and 419 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
