• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20027

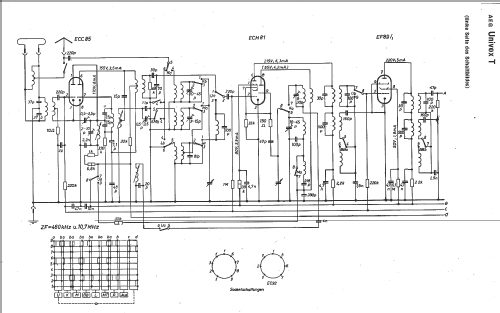

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3-D-Raumklangmusiktruhe Univox T [mit Magnetophon] - AEG Radios Allg.Elektricitäts-

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1000 x 840 x 410 mm / 39.4 x 33.1 x 16.1 inch

• Notes
• Tonband-Chassis = Magnetophon KL25. Ausführungen in hell und dunkel. Siehe auch gleiches Modell mit Plattenwechsler.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Price in first year of sale
• 1,998.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56
