- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 189381
Sammlung
Sammlung
Sammlung
Ansicht Chassis unten
Sammlung
Sammlung
Ansicht LMK-Spulensatz und Wellenschalter

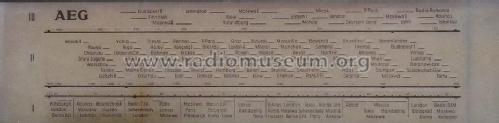

AEG 430 W Skala (Glas)
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 430W - AEG Radios Allg.Elektricitäts-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 352 x 290 mm / 20.9 x 13.9 x 11.4 inch
- Notes
-
Siehe auch AEG 69WK mit identischem Chassis, jedoch ohne magisches Auge.
- Net weight (2.2 lb = 1 kg)
- 11.7 kg / 25 lb 12.3 oz (25.771 lb)
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
